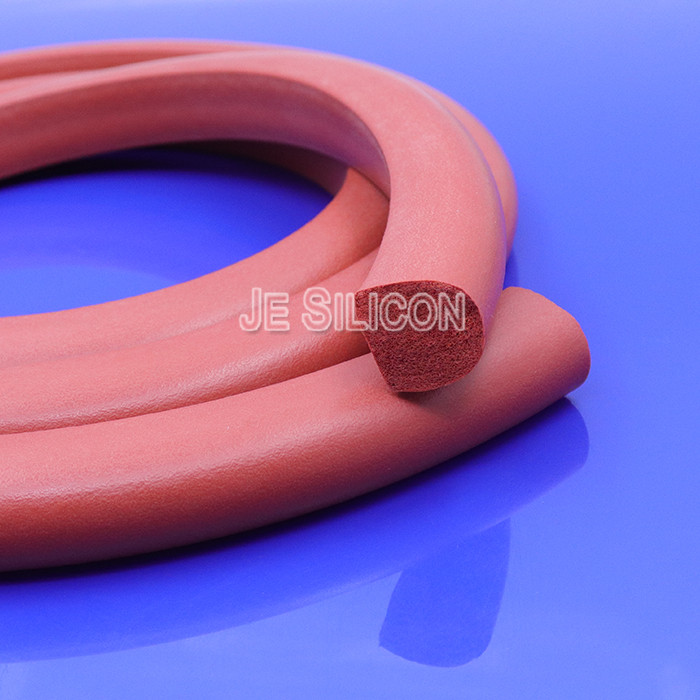

0.1mm Tolerance SGS LFGB Self Adhesive Sponge Strip
Epdm rubber sponge automobile door and window sealing strip
silicone strip
Silicone foaming strip is a sealing strip that produces pores after
processing according to the characteristics of some materials.
Silicone foam strip is formed by microwave vulcanization technology
in one time, with smooth surface and no trace of seam. It has good
elasticity, compression deformation resistance and excellent
anti-aging properties. Good flame retardancy, low smoke intensity,
low toxicity, stable product performance, high dimensional
accuracy.
Specification Of Epdm rubber sponge automobile door and window sealing strip
silicone strip
| Molding process | extrusion molding,with foaming agent and silicone raw material |
| Temperature range | -40℃ to 260℃ |
| Dimension | Customized size |
| Tolerance | Small surface tolerance,and diameter tolerance is ±0.1mm |
| Density | 0.25-0.8g/cm³ |
| Hardness | 5-40 shore C |
| Compression set 50% | ≥38 |
| Tensile strength | ≥1.5 |
| Elogation | 200% |
| Features | Smooth surface,eco-friendly,non-toxic,tasteless,anti-aging |
| Performance | Compression deformation resistance,and be durability;stand
high-temperature;can custom-made flaming retardant,and reach
UL-94V0 |
Application Of Epdm rubber sponge automobile door and window sealing strip
silicone strip
1, Packaging materials (cushioning materials for transporting
precision machinery, medical instruments, furniture, glass, etc.,
protective cushioning materials for small electrical appliances,
etc.)
2, Civilian and construction (residential slab filling materials,
residential sealing materials for doors and windows, concrete
shrinkage gasket materials, open channel filling materials, various
civil and construction filling materials, etc.)
3. Vehicles, boats (sealing materials for doors, sealing materials
for luggage compartments, hoods for air cushions, various materials
for pipe seals, materials for light seals, materials for
anti-vibration engines, cushioning materials and types of sealing
equipment, etc.)
4, heat insulation and heat preservation (coolers and air
conditioners are sealed with heat insulation materials,
refrigerators and freezers are sealed with heat insulation
materials)
5, sound and moisture-proof (sound and moisture-proof sealing
materials for various machinery and equipment, sealing materials
for residential soundproof walls, waterproof and moisture-proof
sealing materials for various electrical appliances, moisture-proof
sealing materials for various machinery and equipment, etc.)
Rubber Materials Performance
A:Excellent B:Good C:Suitable D:Limited E:Poor
| NR | IR | SBR | BR | IIR | EPDM | CR | NBR | PU | CSM | ACM | ECO | VAE | SI | FPM |
| Tensile Strength | A | B | B | D | D | D | B | B | A | B | E | D | B | E | B |
| Elongation | A | A | B | D | B | B | B | B | A | B | E | E | E | A | E |
| Rebound Resistance | A | A | D | A | E | B | A | B | A | D | D | D | D | D | D |
| Tear Resistance | A | B | D | D | D | D | B | B | A | D | E | D | D | E | D |
| Abrasion Resistance | A | A | A | A | A | B | B | A | A | B | D | D | B | E | D |
| Impact Strength Resistance | A | A | A | B | B | B | B | B | A | B | E | B | D | E | D |
| Gas Impermeability | D | D | D | D | A | D | A | B | B | B | D | A | B | E | B |
| Oxygen Resistance | D | D | D | D | A | B | B | D | B | A | B | B | A | A | A |
| Ozone Resistance | E | E | E | E | B | B | B | E | B | A | B | A | A | A | A |
| Weathering Resistance | D | D | D | D | A | A | B | D | B | B | B | B | A | A | A |
| Flame Resistance | E | E | D | D | A | A | B | E | B | A | B | B | A | A | A |
| Heat Resistance | E | E | D | D | B | B | B | D | D | B | B | B | B | A | A |
| Low Temperature Resistance | B | B | D | B | D | B | D | D | B | D | E | B | B | A | B |
| Oil and Fuel Resistance | E | E | E | E | E | E | C | B | B | C | B | B | D | D | A |
| Animal and Vegetable Oil Resistance | D | D | D | D | B | B | B | B | B | B | A | A | D | C | A |
| Alcohol Resistance | B | B | B | B | B | C | A | B | C | A | B | B | B | B | B |
| Alkaline Resistance | D | D | D | D | A | B | A | B | E | A | E | C | B | E | C |
| Acid Resistance | C | C | C | C | B | B | B | B | E | B | D | D | D | D | B |
| Aliphatic-Solvent Resistance | E | E | E | E | E | E | B | B | B | B | A | B | D | E | A |
| Aromatic-Solvent Resistance | E | E | E | E | E | E | D | C | E | D | D | B | E | E | A |
| Oxygenated-Solvent Resistance | B | B | B | B | A | A | E | E | E | D | E | E | D | D | E |
| Water Resistance | A | A | B | A | A | A | B | B | D | B | E | B | B | B | B |
Features Of Silicone strip
1. material: made in high-grade silicone rubber material,
environmental safe material, non-toxic.
2. it's innocuous and safe, widely used in the instruments and
equipment.
3. waterproof,dustproof,anti-oil,anti-acid,anti-alkali,can be used
in any bad enviroment
4. long life and strong abrasion resistance, aging resistance,
flame resistance,weatherability,etc.
5. excellent resistant to ozone,oxygen,mineral,oil,synthetic
hydraulic fluid,fuels,solvents&chemicals.
6. high and low-temperature resistance
7. any other shapes can be designed, just you send us your
pictures, drawings, or designs.
8. quality meet the SGS, FDA, MSDS, CE, PPAUL, and other
international quality test standards.
Our Services:
1. Manufacturing and exporting experience for over 10 years.
2. Products are supplied to over 50 countries.
3. One-stop service from rubber molded parts to rubber extruded
parts. Save time and save money for you.
4. In-house mold design and building capabilities
5. Injection, injection transfer, compression, extrusion and
silicone liquid injection capabilities
6. Our product are in high quality
FAQ:
1. Q: How many days for mould open and sample produce?
A: Open mould need 3-5 days, sample produce need 3days.
2. Q: What is the mould and sample charge?
A Mould charge is suffered by customer, we will supply best price
for mould charge. Sample charge based on the quantity,
little sample is free. Expres charge paid by customer
3. Q: OEM/ODM is accept or not?
A: OEM/ODM is welcomed, we can also print the logo according to
your requirement.
PS: Only for non-infringing OEM/ODM is enabled.
4. Q: Delivery Time
A: Usually after the shipment, within 15days goods will be finished
shipment.
5. Q: Quality Control and After Sales Service
A: During production we have strict inspection system for the
production, if there is problem happens, we will try our best
help solving the problem, such like bank, transportation, if there
is quality problem confirmed, we also will undertake
responsibility and suffer.
6. Q: Is price can be discount?
A: Based on the quantity we will make the best quoation, so
discount will be based on the quantity.
